BuiltRight Bulkhead Accessory Rail System: 15+ F-150/Raptor (5.5 Ft. Bed)

F-150/Raptor Bulkhead Accessory Rail System (5.5 ft. Bed)

Fitment: 2015+ Ford F-150 & Raptor, 5.5 ft. Bed (short bed)

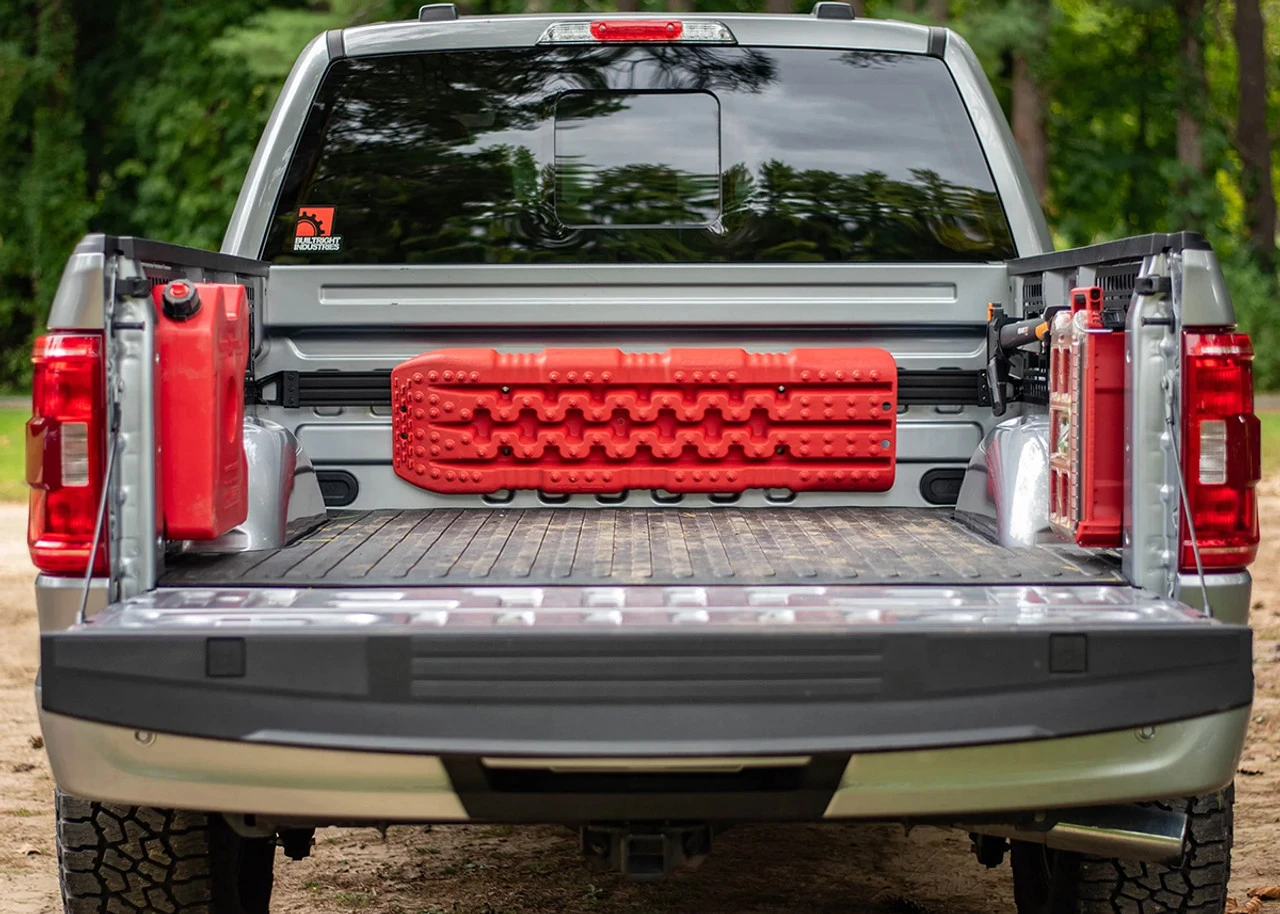

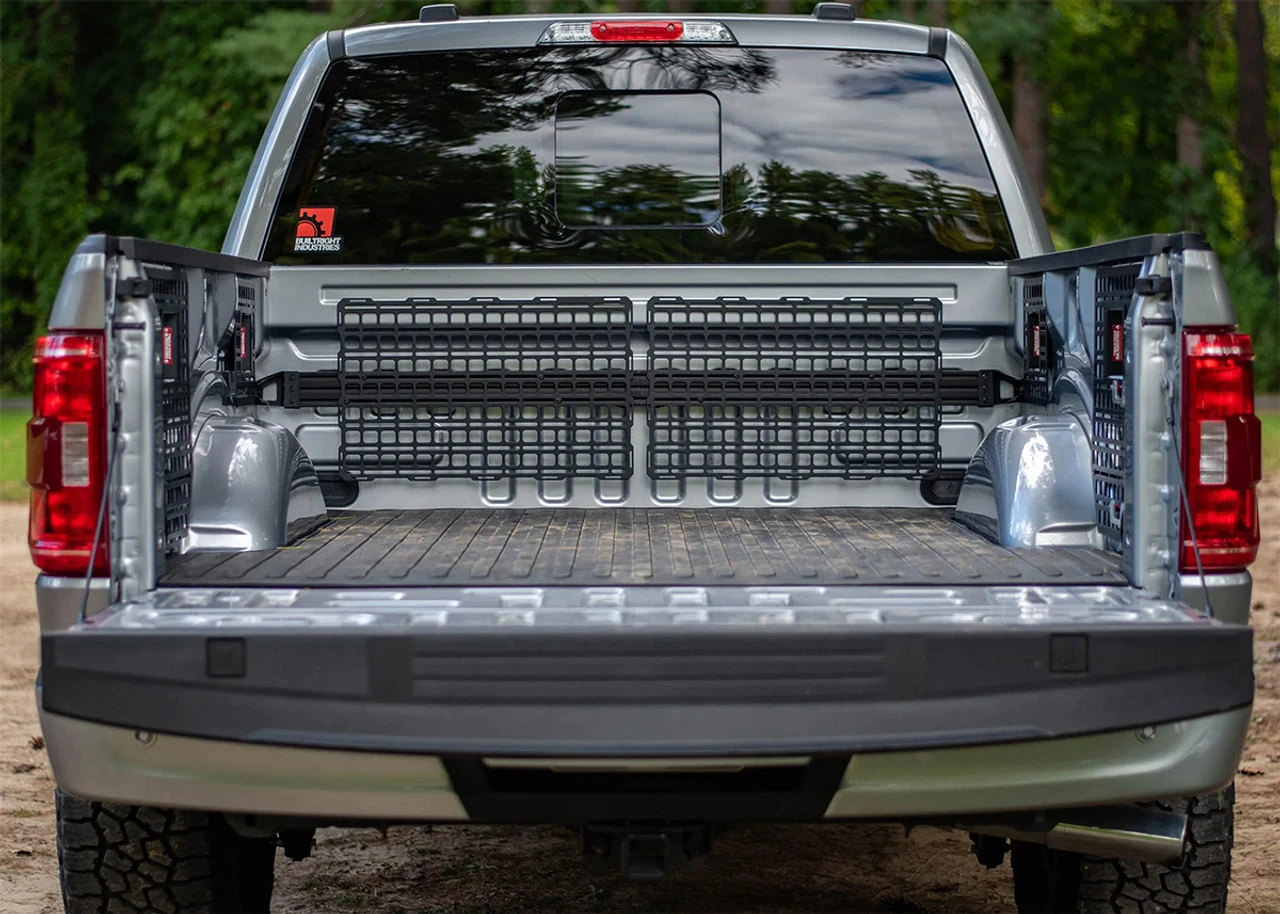

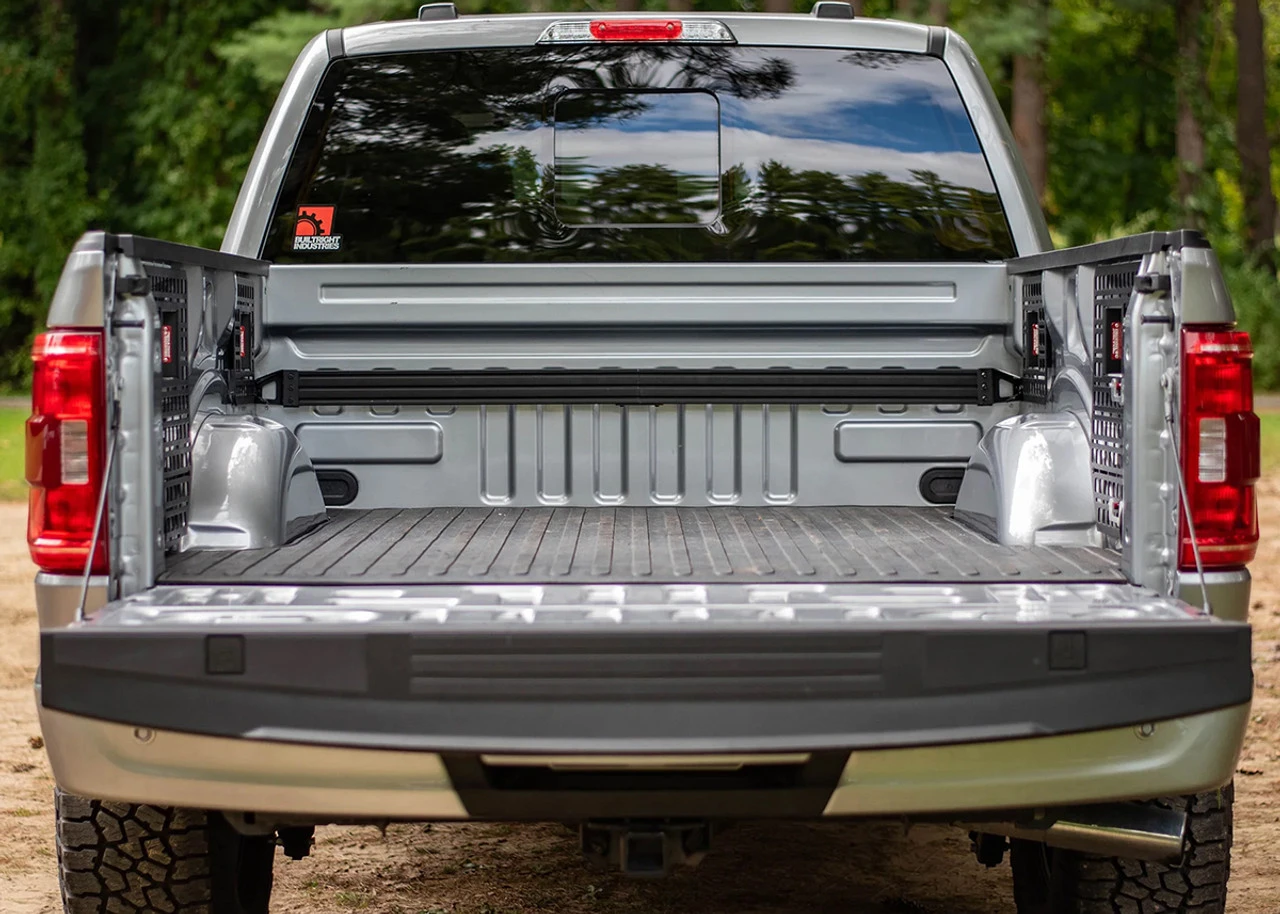

Looking for a way to add storage and utility to your F-150 or Raptor without losing the functionality of your bed? The BuiltRight Bulkhead Accessory Rail (BAR) is something we’ve been using ourselves for nearly four years. There’s just no better way to add extremely flexible gear mounting capability to the cab wall of your truck.

Details

• Based on Aluminum T-Slot Rail — Easily reconfigure in seconds!
• 10ga Brackets w/ Oversized Tie-Downs
• No-Drill Bolt-In Design — Installs with just a couple hand tools

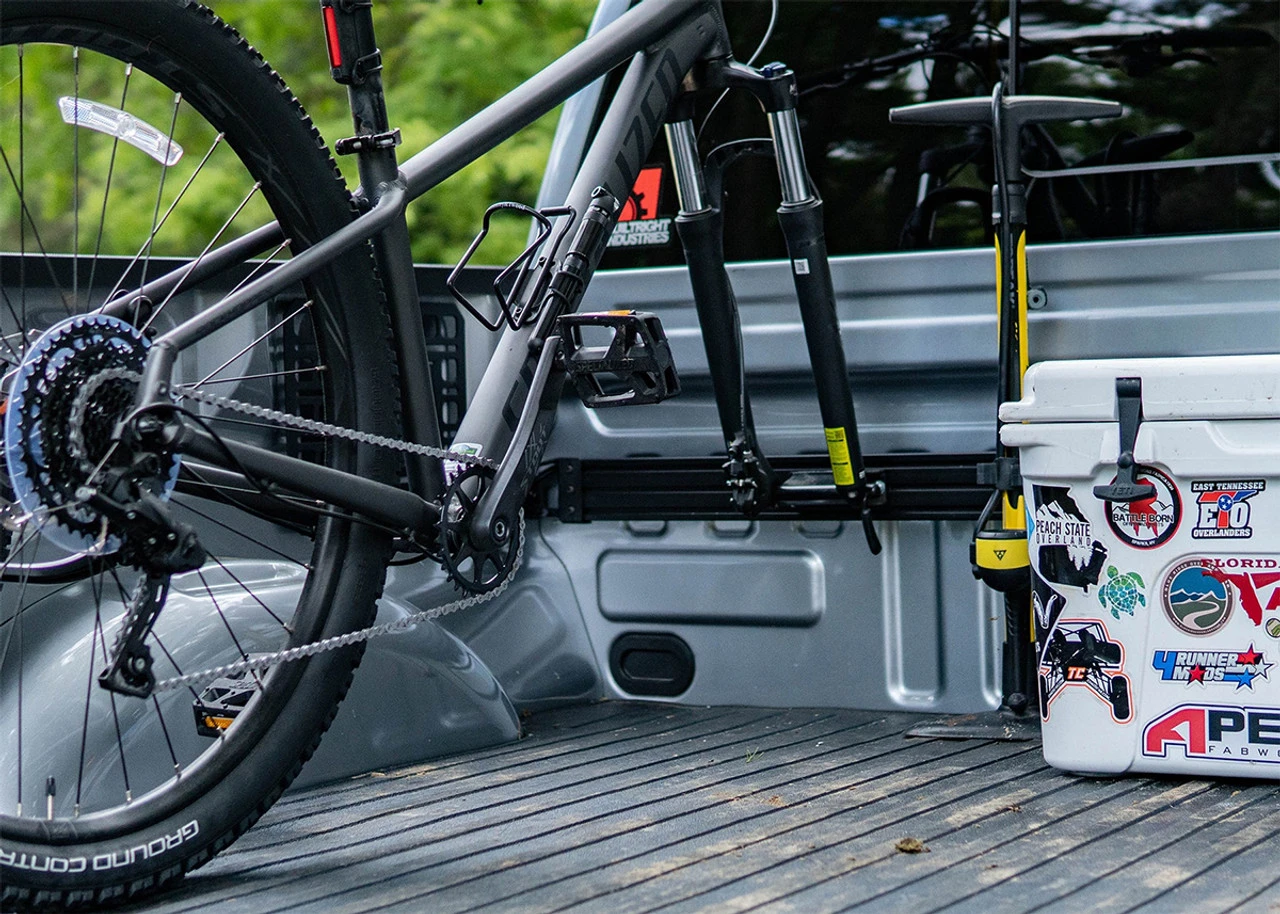

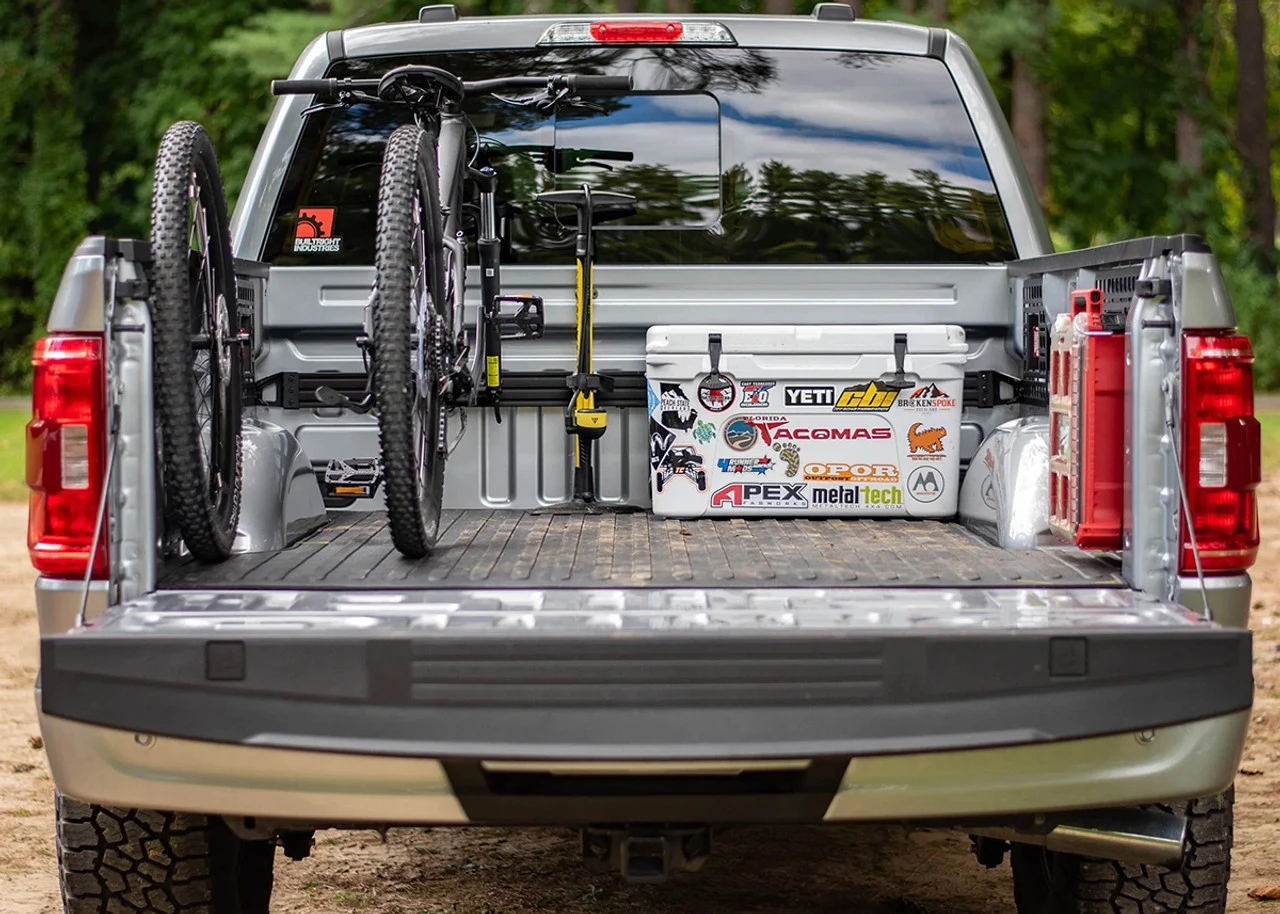

• A perfect platform for bike mounts
• Made in USA. Lifetime Warranty

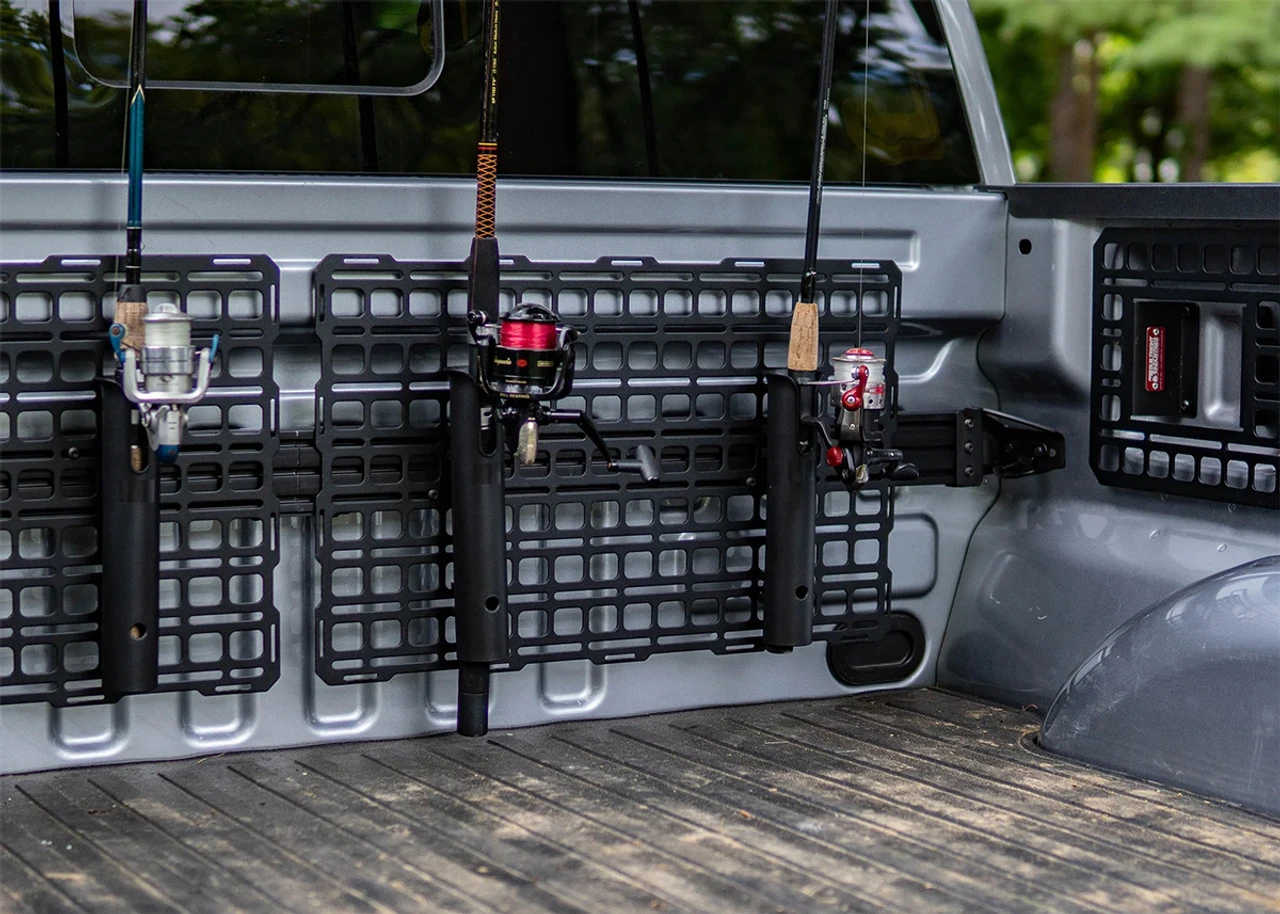

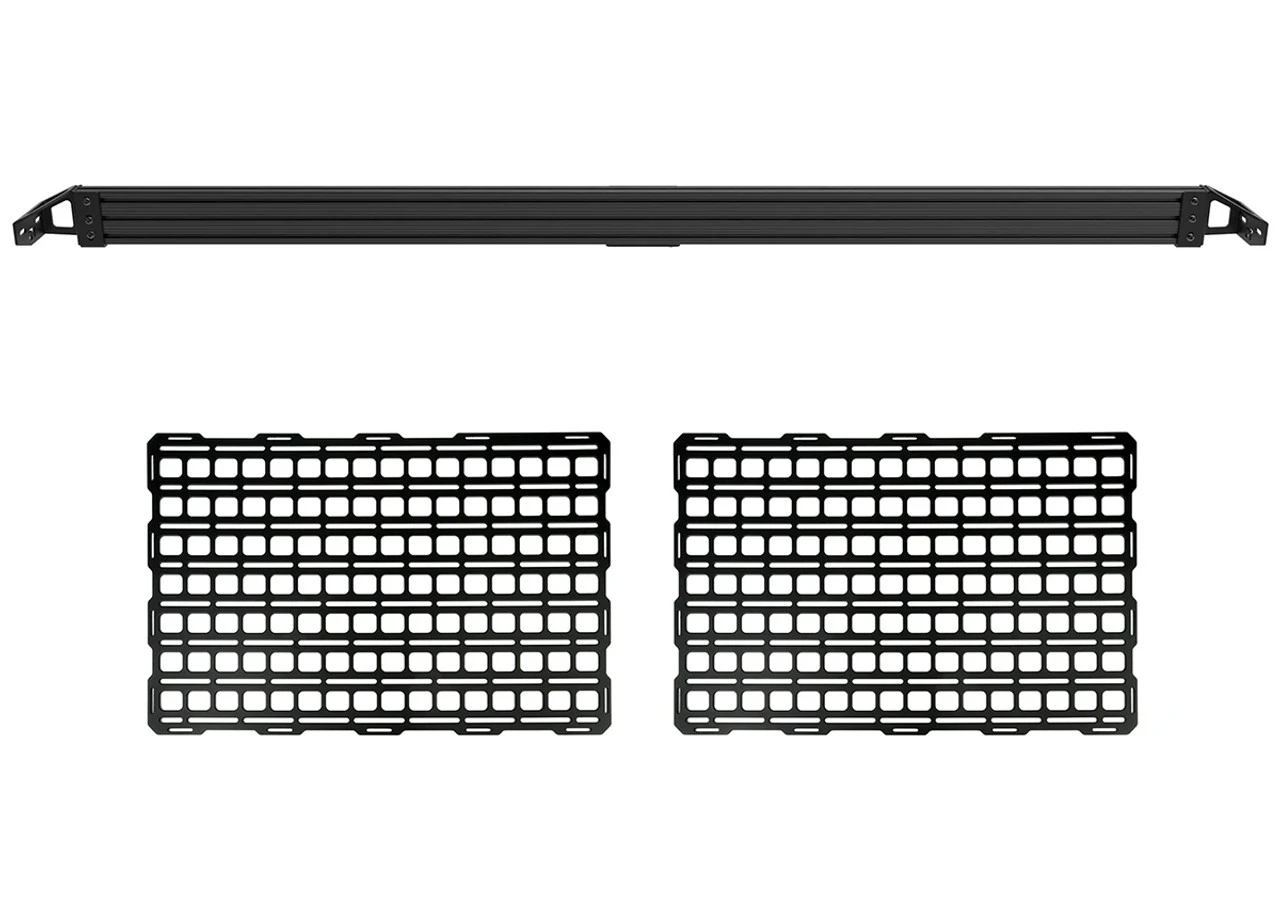

In the 2015+ F-Series lineup, each truck bed is equipped with forward tie-down points. Sadly, these don’t offer a great deal of flexibility when it comes to storing and securing a variety of items. The BuiltRight BAR installs using these same factory mounting points, without the need for modification to the vehicle. The rail is extremely useful on it’s own but the optional panels provide MOLLE-compatible features for the use of MOLLE/PALS accessories in addition to universal slots for an infinite number of possibilities.

CONSTRUCTION

• Laser cut and CNC punched/formed brackets for perfect fit
• Black texture powdercoat for corrosion resistance
• Extremely durable 10ga steel construction
• HD black anodized aluminum extrusion

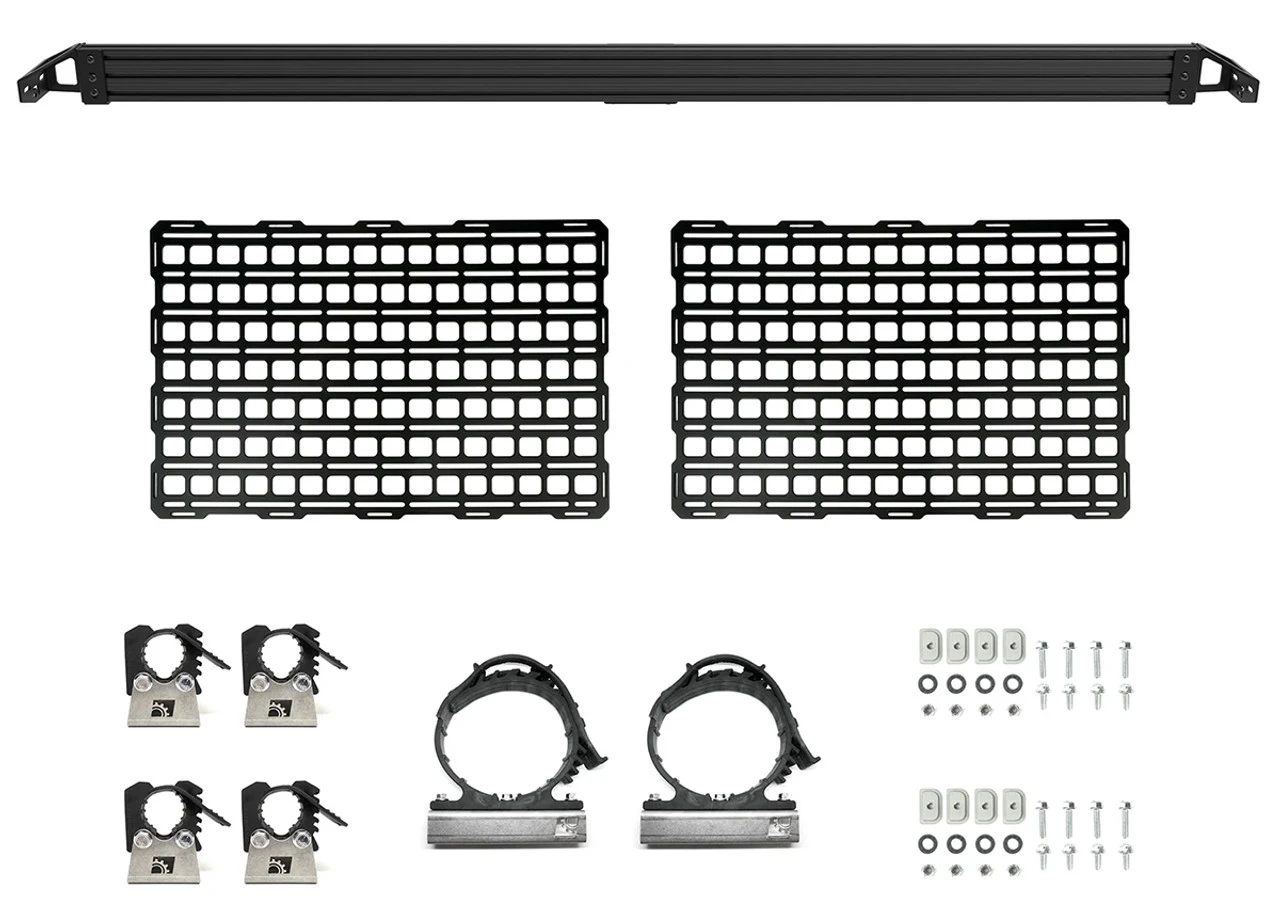

KIT INCLUDES

• 1x Driver side bracket
• 1x Passenger side bracket
• 2x Rail sections
• 1x Rail connecting bracket
• T-slot hardware
• Installation instructions

Installation

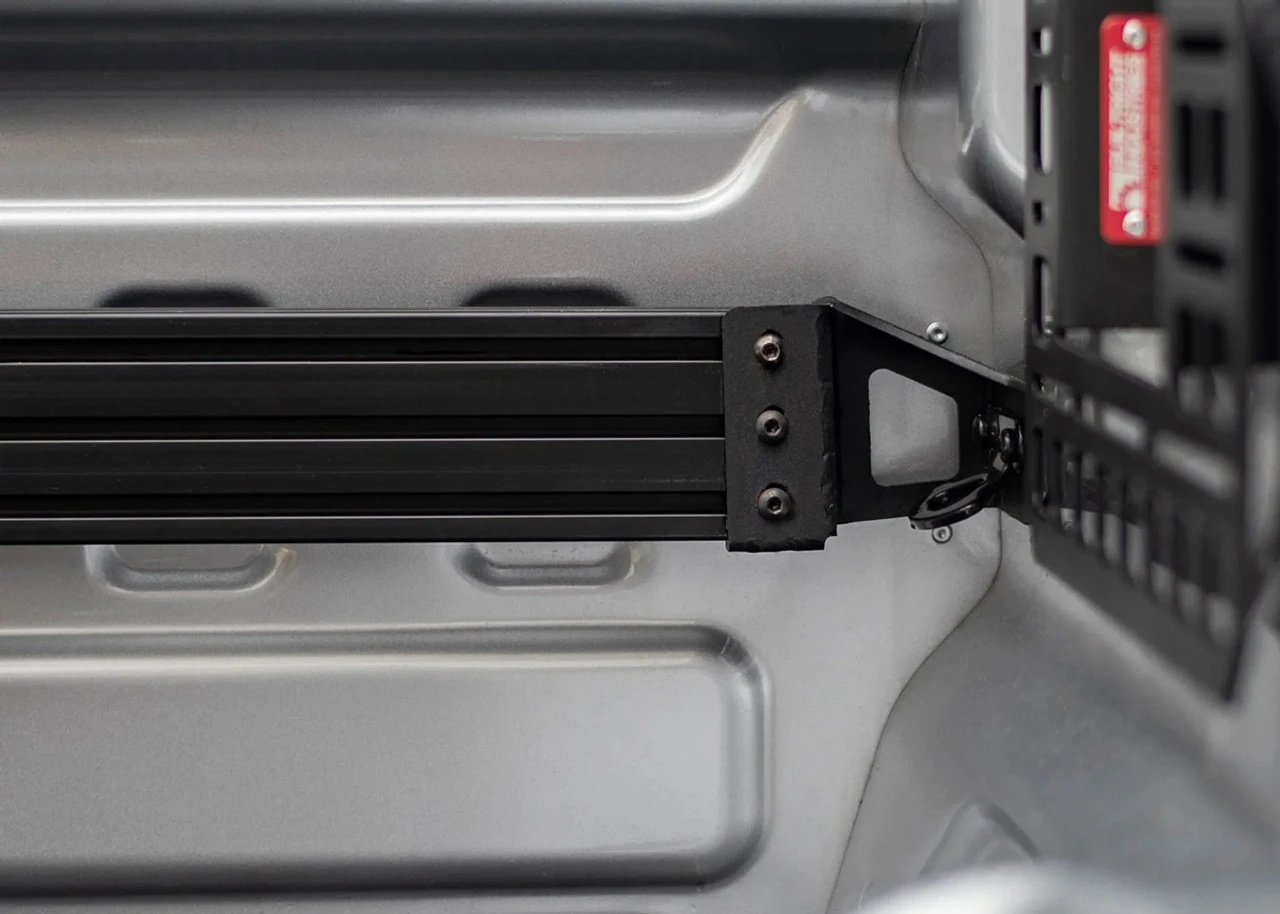

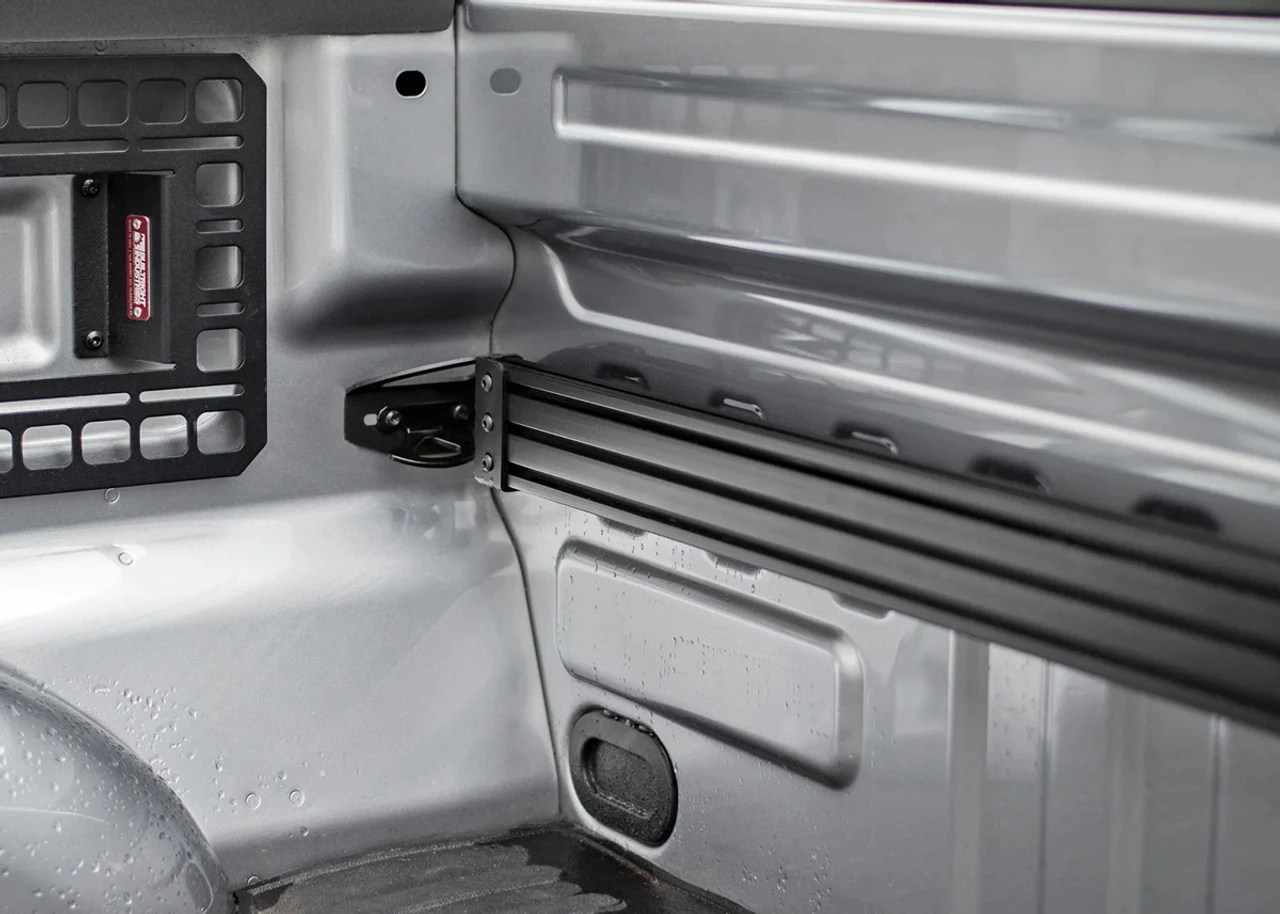

Installation of the BuiltRight Bulkhead Accessory Rail is very straight forward. First, connect the two extrusion pieces using the included hardware and the connecting bracket. Then, connect the two end brackets loosely. Next, remove the tie-downs in either side of the bed using a T30 torx and move the BAR assembly into place. You make choose to replace the factory tie-downs but the BAR brackets can serve the same purpose. Tighten brackets to bedside before tightening the hardware connecting the brackets to the rail itself. Checkout the install video.
