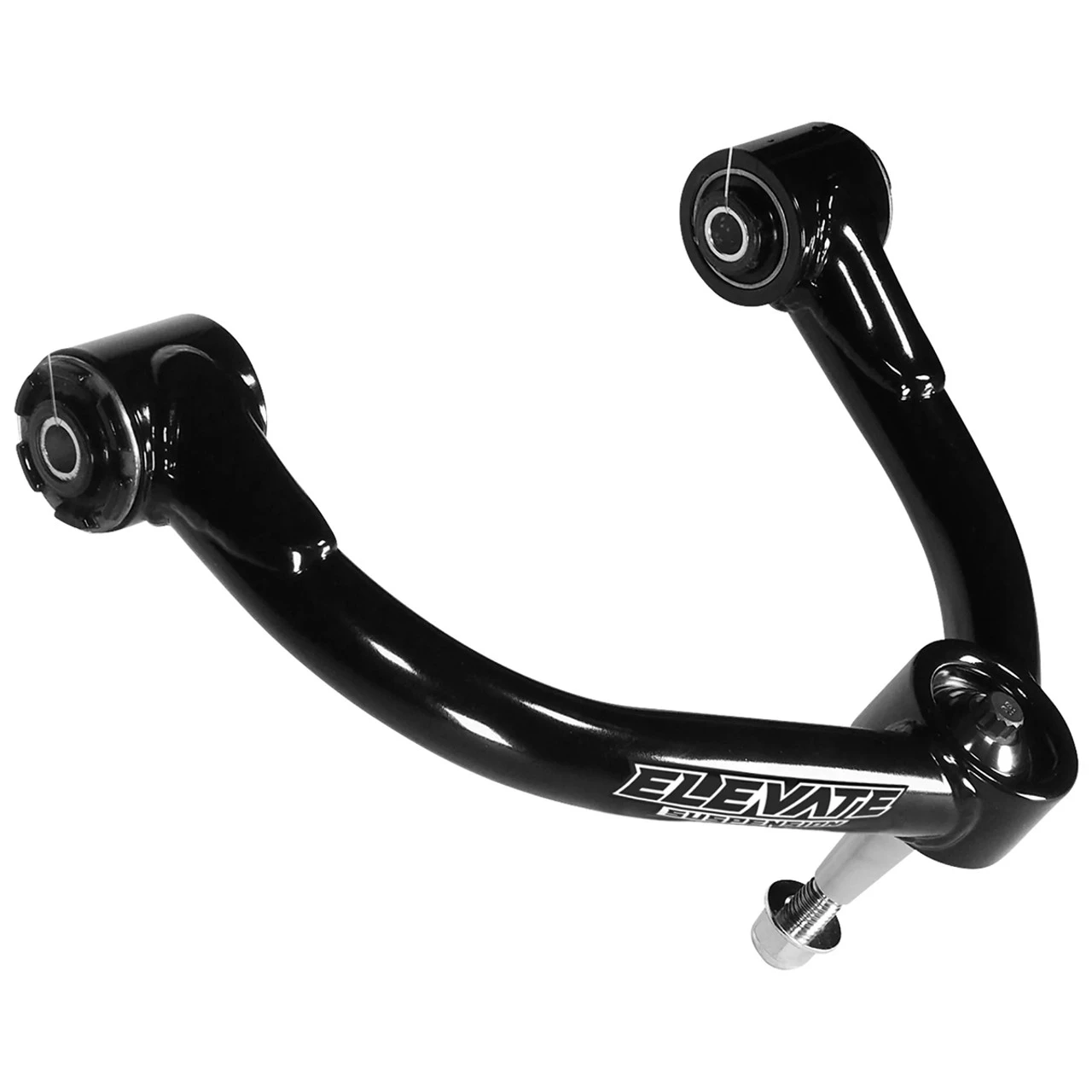

Elevate Chromoly Uniball UCA: 04-20 F-150

04-20 F-150 Chromoly Uniball Upper Control Arms

The Ford F-150 is America’s favorite truck and for good reasons. It’s tough, reliable, and versatile and Elevate Suspension Tube Upper Control Arms can make your F-150 even better. Elevate Suspension tube arms are built to be affordable without cutting corners or using inferior components. They use the same massive 1″ FK uniballs found on their Billet Upper Control Arms with heat-treated 17-4 stainless steel races and 17-4 52100 steel bodies. Complementing the big balls are their custom-machined heat-treated 17-4 stainless steel pins for a big increase in strength. The rest of the arms are just as stout constructed from CNC-bent 4130 chromoly with 1.25″ diameter, .120″ thick tubing. Further separating Elevate Suspension Tube Upper Control Arms from the rest of the pack are their innovative squeak-free bushings.

Elevate Suspension unique, bind-free design requires absolutely no grease or maintenance. And, they eliminate the annoying squeaking that can occur with other bushings often leading to insanity. The bushings are built to last and are backed by a lifetime warranty. Elevate Suspension Tube Upper Control Arms add strength, provide coil clearance, make alignment simple, and maximize wheel travel.

Details

• Built using CNC-bent 1.25″ diameter, .120″ wall 4130 chromoly tubing

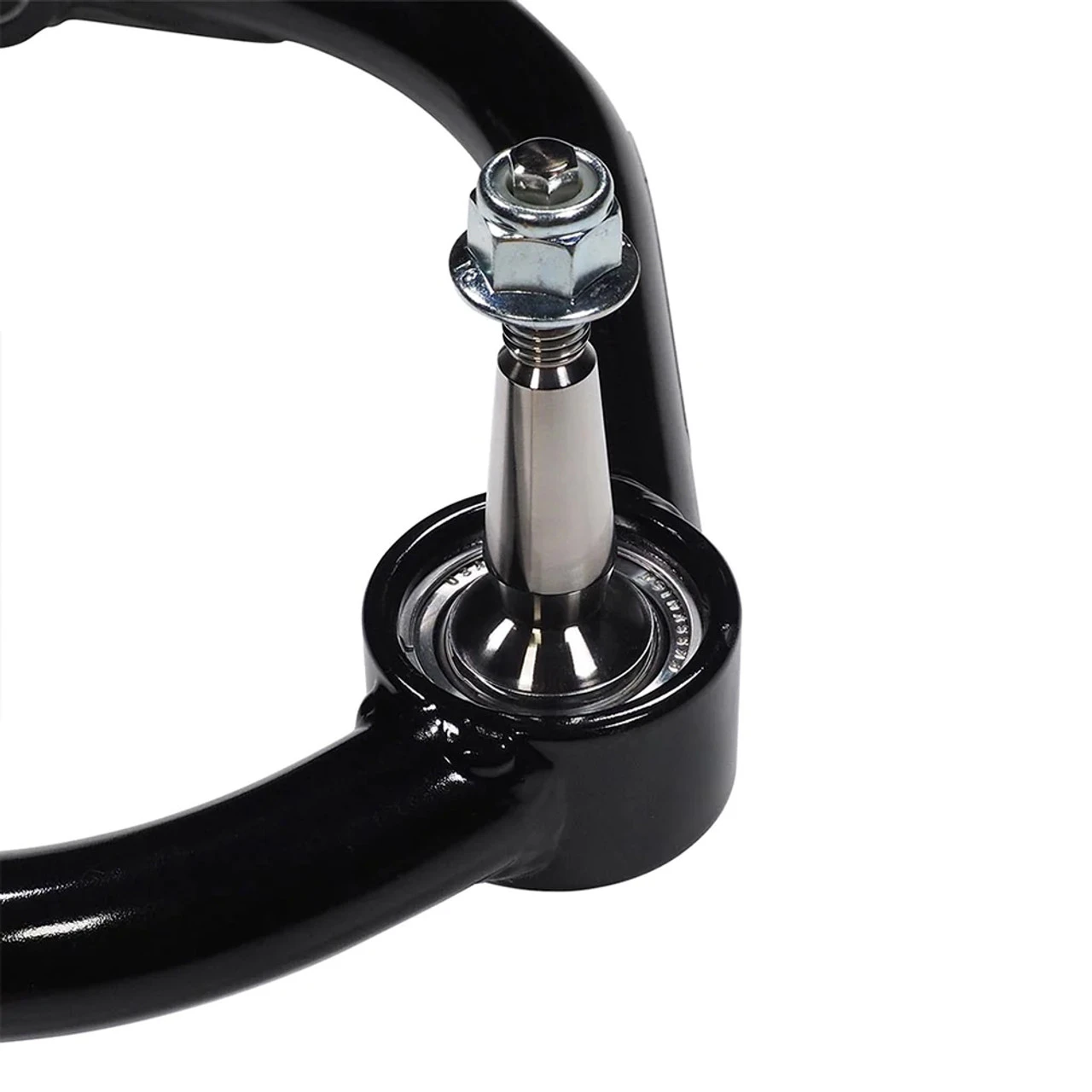

• Super stout 1″ diameter FK heat-treated and hard chrome-plated uniballs made from 52100 steel
• FK 17-4 stainless steel heat-treated uniball races with PTFE liners for durability and extended life
• Custom-made 17-4 stainless steel heat-treated pins and caps for maximum strength

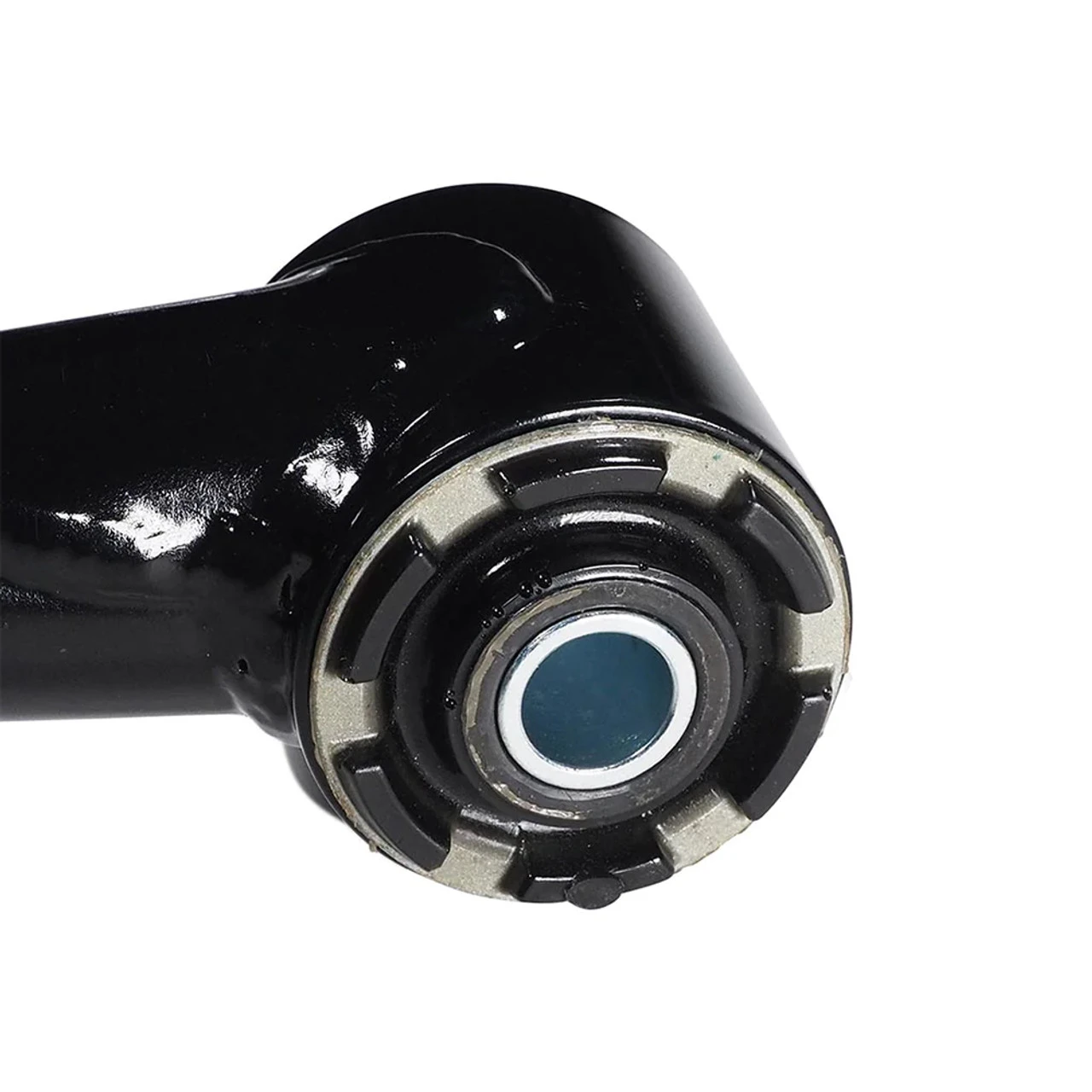

• Innovative squeak-free, zero maintenance bushings that require no grease
• Built-in camber and caster for proper alignment and improved handling
• Designed for maximum clearance and wheel travel
• Two-stage gloss black powder coat with clear finish
• Reinforced bushing pivot barrels
• OE-style ABS routing provisions

What’s Included

• 2x Upper Control Arms
• Hardware
