ICON 19+ Ram 1500 2-3″ Stage 4 Suspension System W/ Billet UCA – K213114

ICON VEHICLE DYNAMICS 19-UP RAM 1500 2-3″ STAGE 4 SUSPENSION SYSTEM W/ BILLET UCA – K213114

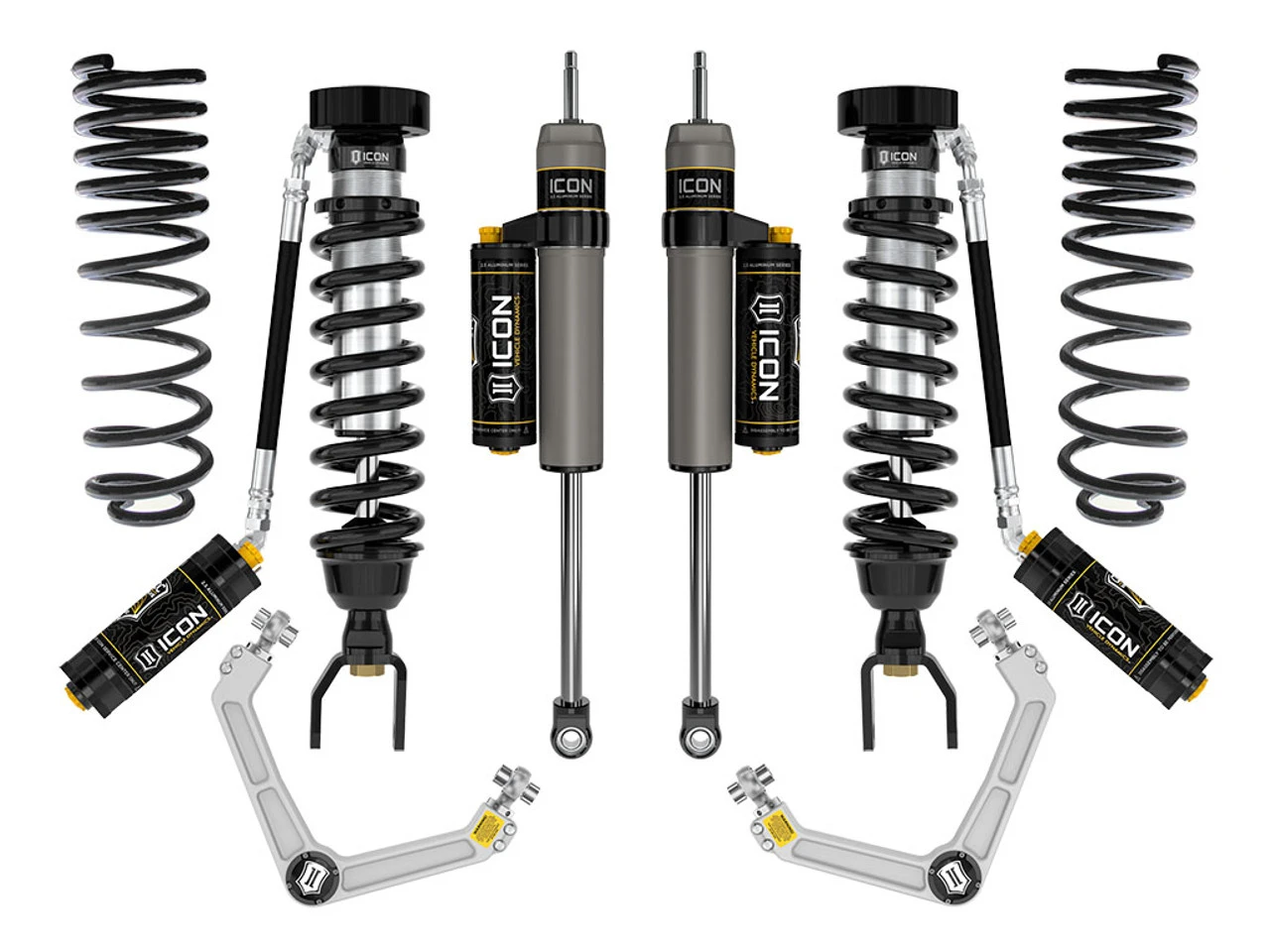

ICON Vehicle Dynamics V.S. CDCV 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The Stage 4 system is paired with ICON Billet Aluminum Delta Joint Upper Control Arms 2.5 Aluminum Series rear shocks, Rear Coil Springs, resulting in the best overall driving experience for your Ram 1500 truck. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard.

For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.

FEATURES & BENEFITS

• Increased wheel travel and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on – no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-Up Ram 1500
• Vehicle specific tuned for superior shock damping and control
• Adjustable from 2-3″ of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
• High strength alloy CNC machined lower mounting clevis
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• ICON CDCV equipped for external tuneability of your shocks
