Ram Mounts RAM No-Drill™ Laptop Mount – 21-23 Bronco, 19-23 Ranger

RAM® No-Drill™ Laptop Mount for 2021+ Bronco & 19-23 Ranger

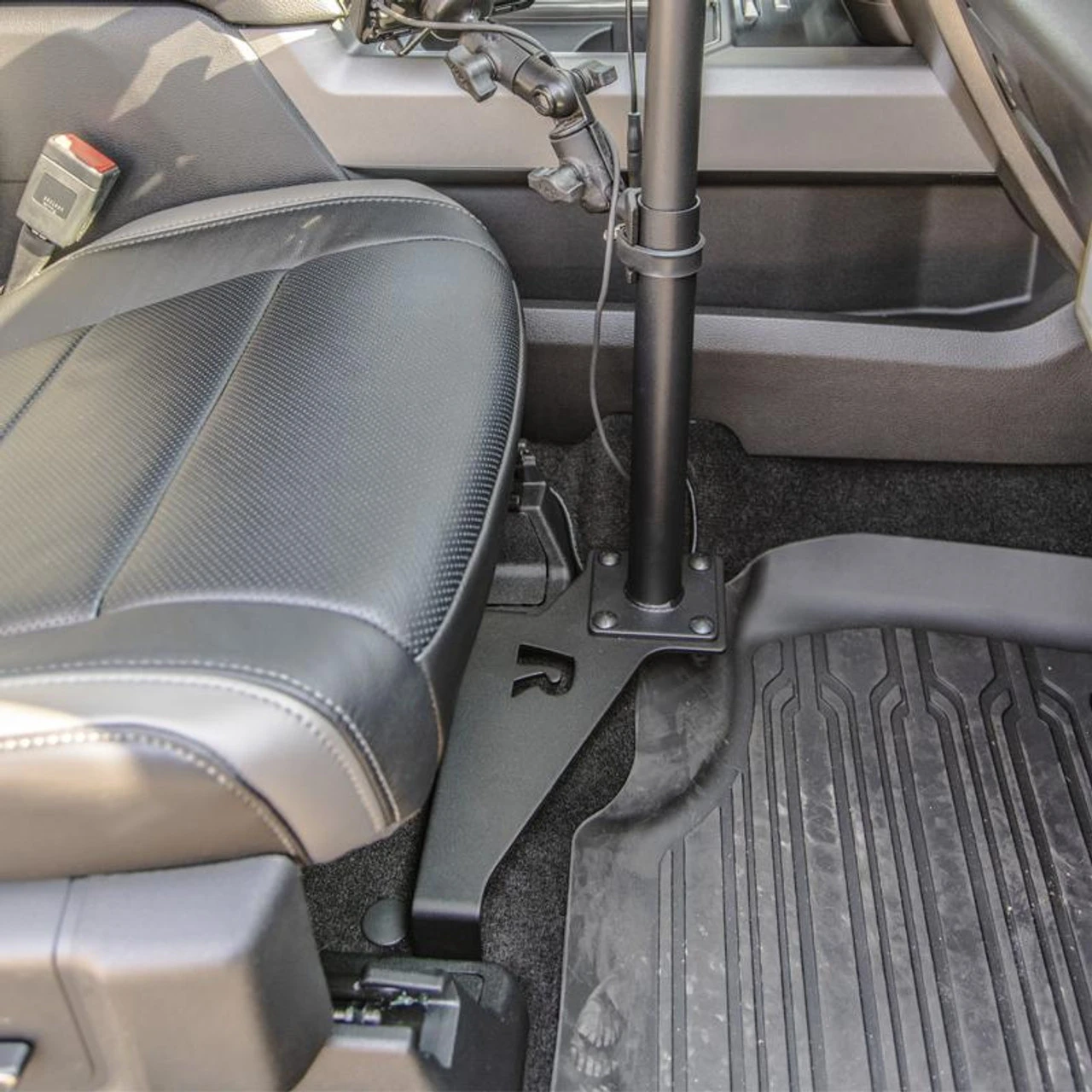

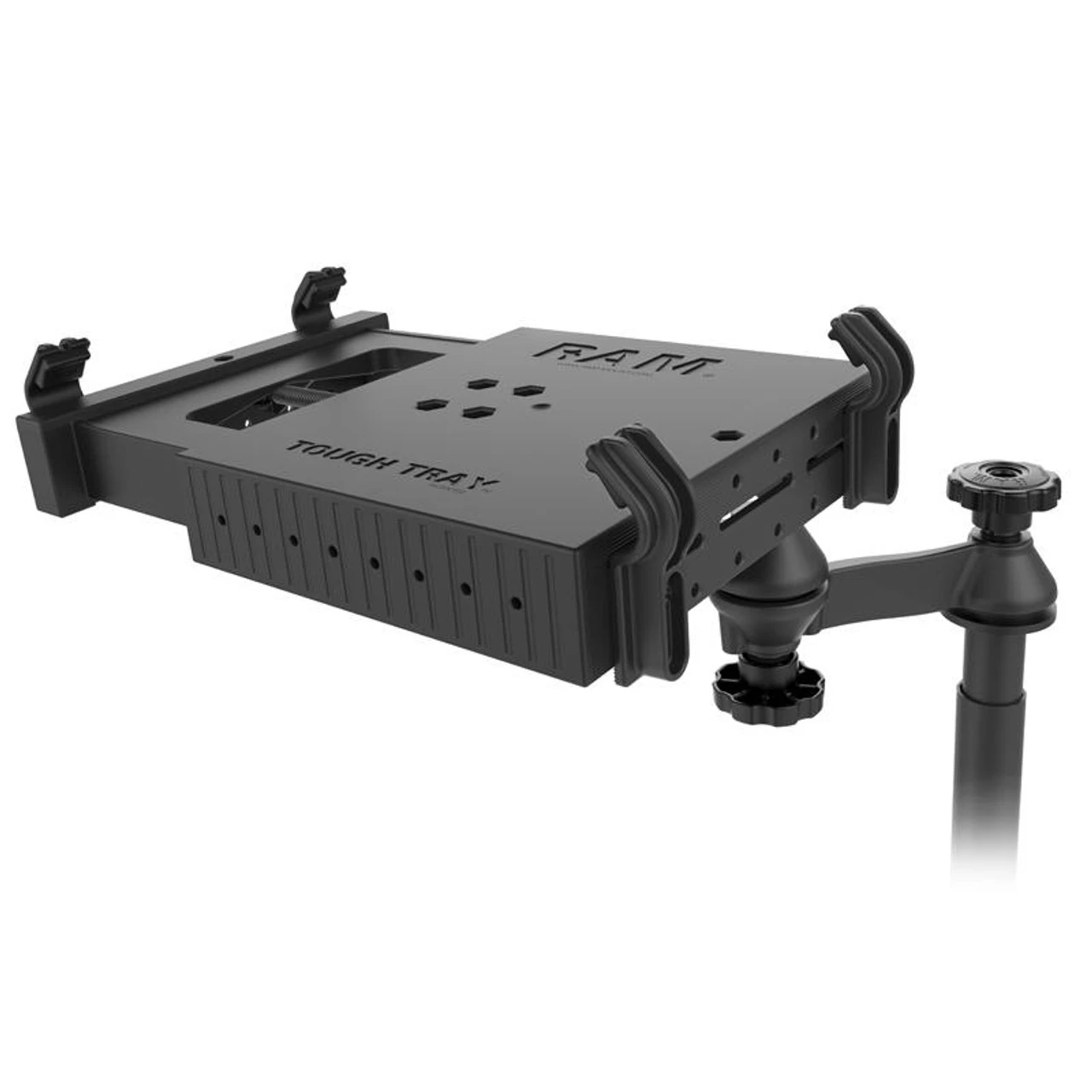

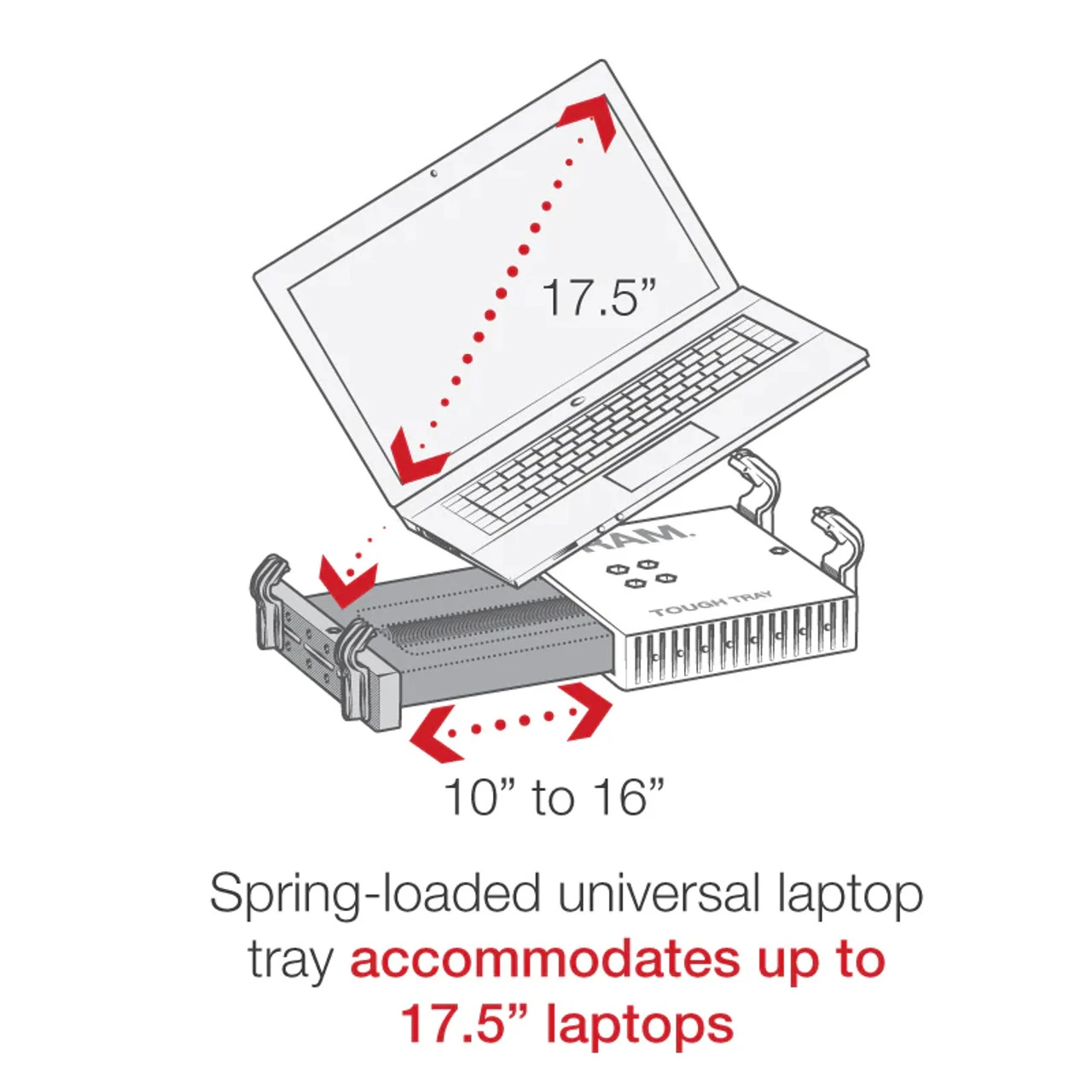

This RAM® No-Drill™ laptop stand system installs quickly and easily into the 2019-2023 Ford Ranger and 2021+ Ford Bronco using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12″ to 18″. Dual swing arms provide articulation and 12″ of reach for passenger and driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ laptop holder accommodates 10″ to 16″ wide laptops, and 17″ wide screens. The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. A screen support and USB light are also available to accessorize the RAM® Tough-Tray™. In addition, hole patterns on the perimeter of the laptop holder are compatible with several RAM® mounting solutions.

FEATURES

• RAM® No-Drill™ mounting base offers low-profile mounting; telescoping pole allows for height adjustments

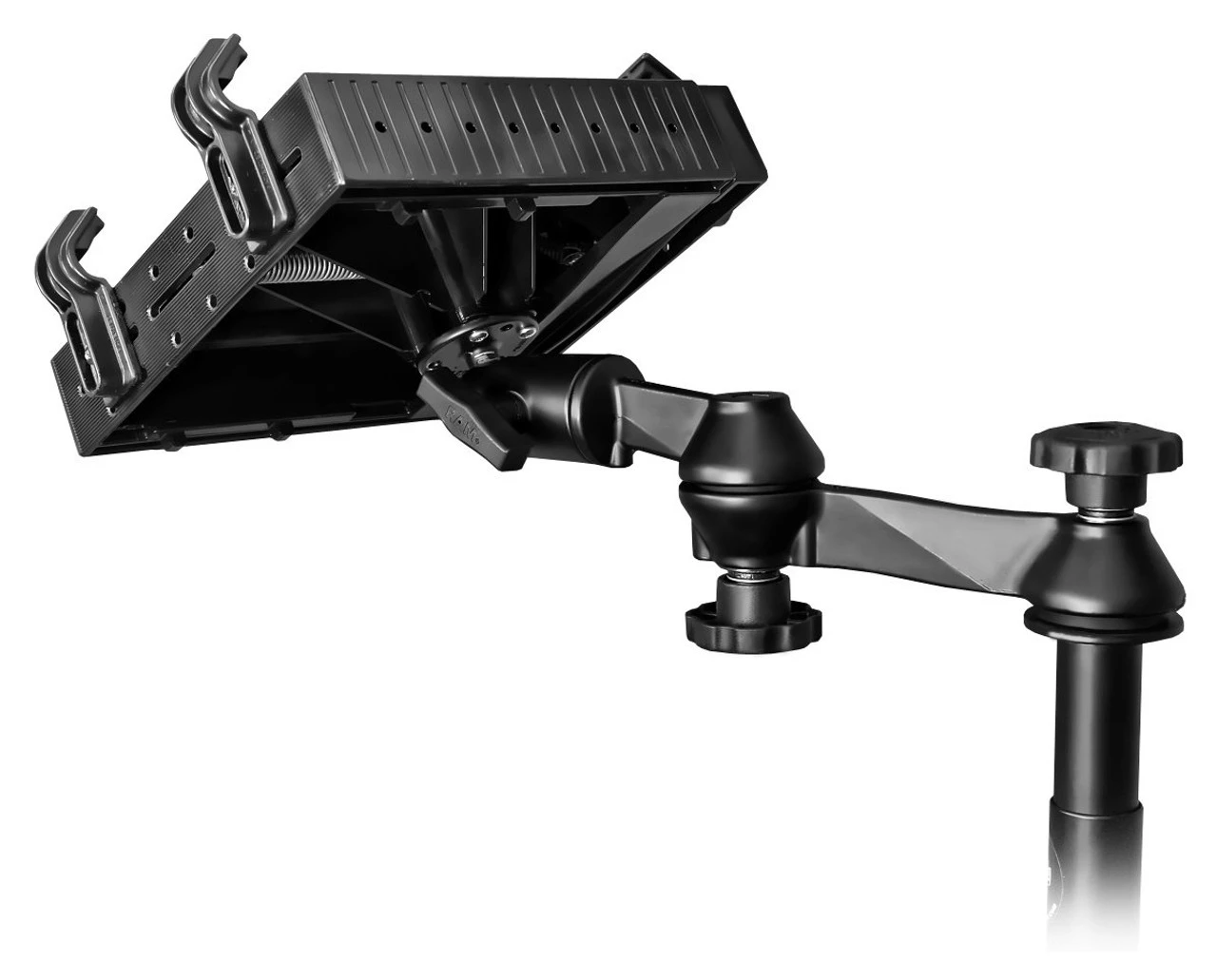

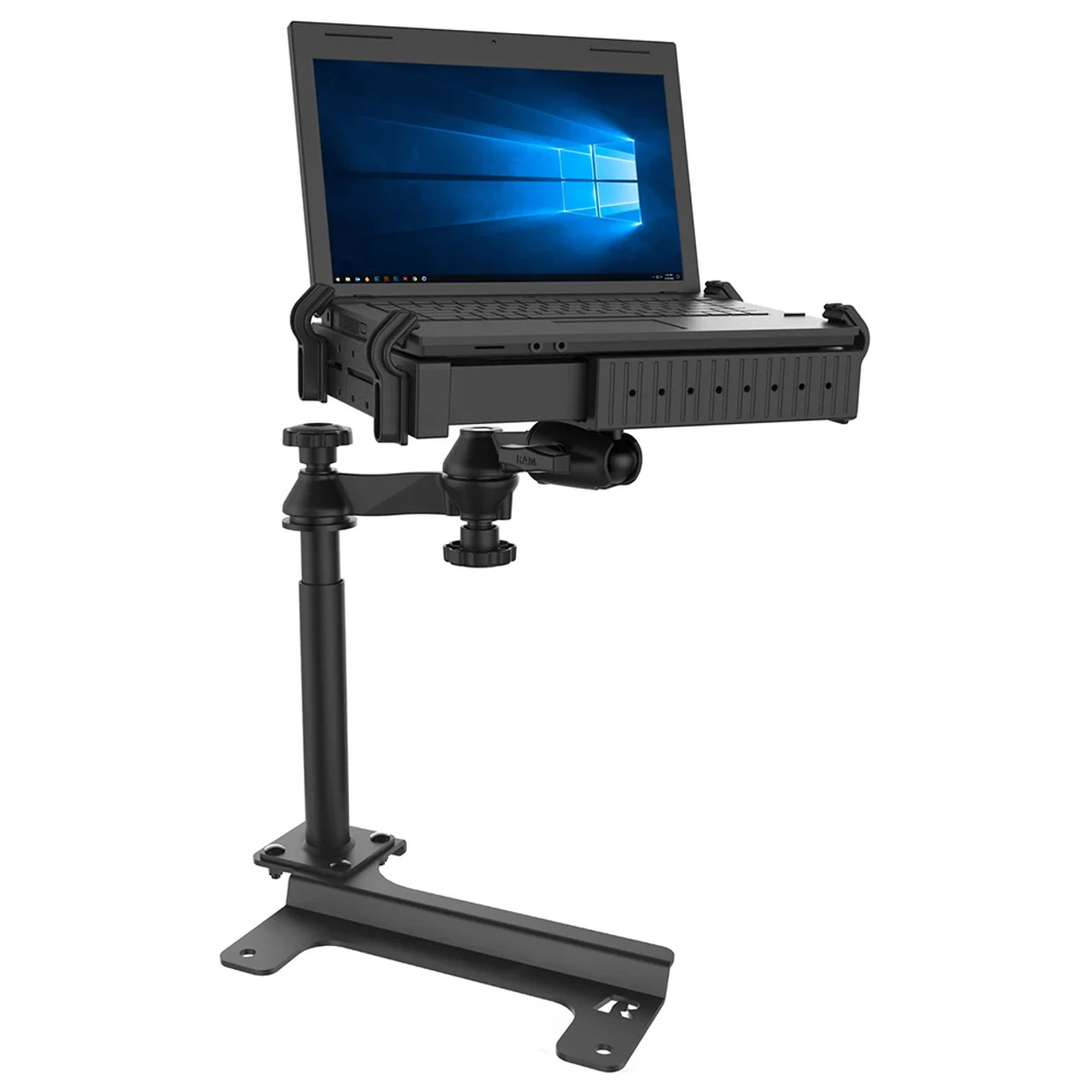

• Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
• Made of powder coated steel and high-strength composite
• Backed by a lifetime warranty

SPECIFICATIONS

• HARDWARE INCLUDED: Assembly Hardware, Stabilizer Foot, (2) M10-1.5 x 75mm Hex Bolts, (2) 1.68″ Stand-Offs, (2) 3/8″ Fender Washers
• TRAY DIMENSIONS:

• Width Range: 10 – 16 in.
• Side Arm Clamp Height: 0.5 – 1.75 in.
• Tray Depth: 10 in.
• Tray Thickness: 2.125 in.

• HOLE PATTERN: Seat Bolt Distance: 11.5 in. center to center
• BALL/SOCKET SIZE: C Size (1.5 in.)
• MATERIALS: Powder coated steel, marine grade-aluminum, high strength composite
• WEIGHT: 15 lbs.
