TeraFlex Jeep JK/JKU HD Drag Link Kit & Tie Rod Kit Or Right-H&-Drive – 1853905

TeraFlex Jeep JK/JKU HD Drag Link Kit & Tie Rod Kit or Right-H&-Drive – 1853905

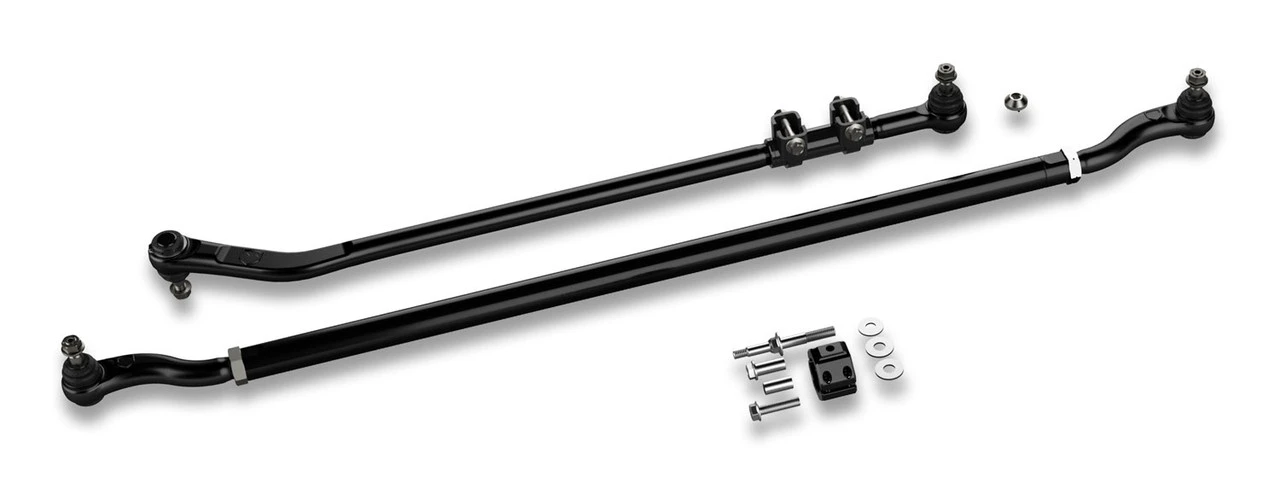

The TeraFlex JK/JKU Heavy-Duty Drag Link Kit and Heavy-Duty Tie Rod Kit is designed for extreme conditions that typically cause factory steering components to bend and fail.

Details:

• JK/JKU HD Drag Link Kit and Tie Rod Kit (or Right-Hand-Drive)
• Made for extreme conditions that cause factory steering components to bend and fail
• For JK and JKU Wranglers with 4-6 inch lifts
• Sold As A Kit
• SKU: 1853905

Fits:

• 2007-2018 Jeep JK Wrangler (2-door) – LH-drive as a flipped drag link
• 2007-2018 Jeep JKU Wrangler Unlimited (4-door) – LH-drive as a flipped drag link
• 2007-2018 Jeep JK Wrangler (2-door) – Right-Hand-Drive
• 2007-2018 Jeep JKU Wrangler Unlimited (4-door) – Right-Hand-Drive

Specs:

• Lift Height: 4-6 Inches

Includes:

• HD Drag Link Kit (P/N 1853920)
• HD Tie Rod (P/N 1853910)
• Steering Stabilizer Relocation Mounting Bracket Kit – HD 1-5/8 inch (42mm) Tie Rod (P/N 1123160)

Features and Benefits – HD Drag Link Kit – (P/N 1853920):

• Relocates drag link over the knuckle
• Bolts directly to new high steer knuckle (not included)
• 50 percent stronger than factory drag link to help eliminate front end shimmy and other alignment i
• Complete drag link is fully forged to eliminate excess movement during hard steering maneuvers
• 1.25 inch O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
• Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
• Adjustable preload tension to ensures proper long-term durability
• Joint is pressed into rod end housing and secured with snap ring
• Fits OEM 17 inch wheel

Features and Benefits – HD Tie Rod (P/N 1853910):

• HD 1-5/8 inch O.D. (42mm) 4140 heat treated chromoly steel
• More than 200 percent stronger than factory tie rod
• Forged tie rod end housing designed specifically for JK/JKU models
• Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
• Features adjustable preload tension to ensure proper long-term durability
• The joint is pressed into the rod end housing and secured w/ a snap ring
• Tie rod end joint allows up to 14 degrees of movement to minimize tie rod roll, while maximizing turnability
• Allows proper clearance for use with factory 17 inch wheels
• Steering Stabilizer Relocation Mounting Bracket Kit – HD 1-5/8 inch (42mm) Tie Rod (P/N 1123160)

Notes:

• Modifications required to flip the JK/JKU Drag Link – this kit does not include those required items
• Install Time: 1.5 Hours
